The Analog Computer Confetti is a modular system that makes it possible to perform all kind of computations and operations on base of electrical voltage.
This stack able modular electronic analog computation system was and is still developed by Wolfgang Spahn since 2015.

The analog computer Confetti was further developed and presented at the residency at Art Science BLR and the Indian Sonic Research Organization at the Srishti Institute of Art, Design and Technology, courtesy of Goethe-Institut Max Mueller Bhavan in 2016.

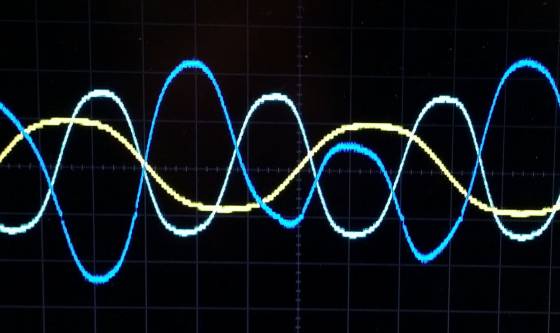

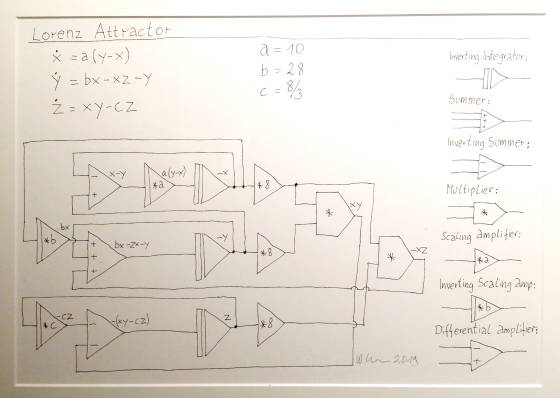

The analog computer was key for the light and sound installation Strange Attractors by Wolfgang Spahn where he “calculated” a Lorenz System to modulate an other Lorenz System.

Confetti was the basic brick in the installation Symbolic Grounding by Ch.Faubel and W.Spahn.
And it was the core of the Installation Echo State Network, an analog neural synthesizer network build out of 150 Confetti Neurons.

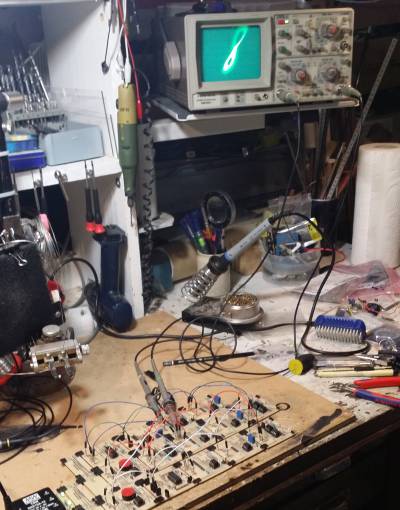

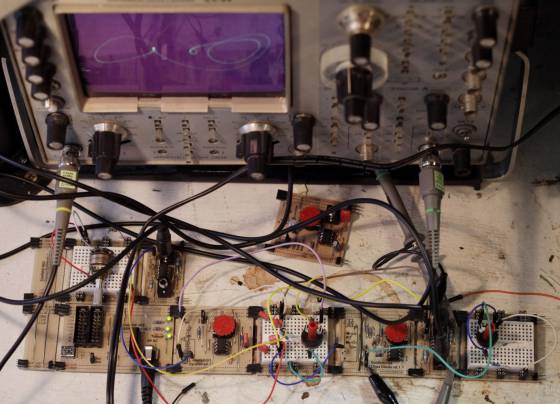

Each module can run one operation, some boards together can be used for analog computing, designing synthesizer and all other kind of analog electronics.
For connecting the Confetti modules one can use the bus on all boards or just use patching wires. Certainly, a combination of both is possible. The connection boards are helpful for putting together a lot of boards.

The in- and outputs can be patched with normal breadboard patching wires. It's manly based on the operational amplifier TL072 and the operation voltage is 12V/-12V.

The analog computer was inspired by the articel “Die Chaos-Maschine: Analoge Computer wiederentdecken” Elector Magazine 09-10/2011 by Maarten H. P. Ambaum and R. Giles Harrison (Department of Meteorology, University of Reading, UK).
Further information and wiring examples one can find in the old manuals of analog computer of the online library of the Analogmuseum: http://www.analogmuseum.org/english/library.html.

One can implement analog artificial neuron systems in the analog computer with the Confetti501 Confetti Neurons as well as with the outdated boards of the Pop Neurons.

Neural Network Modules:

• Confetti501 Confetti Neuron
• Confetti502 Analog Junction
• Confetti503 Digital Junction
• Confetti504 Quad Indicator Buffer
• Confetti505 End Stage
• Confetti506 Monostable Pulse
• Pop Neuron (obsolete)

Standard Operational Modules:

• Confetti701 Absolut Value
• Confetti702 Differential Amplifier
• Confetti703 Multiplier
• Confetti704 Non Inverting Summer
• Confetti705 Inverting Integrator
• Confetti706 Non Inverting Scaling Amplifier
• Confetti707 Inverting Scaling Amplifier
• Confetti708 Inverting Summer
• Confetti709 Differentiator

Special Operation Modules

• Confetti101 Gyrator
• Confetti102 Chua'S Diode (with two diodes)
• Confetti116 Chua's Diode
• Confetti105 Instrumentation Amplifier
• Confetti106 Quad Buffer
• Confetti107 Inverting Comparator
• Confetti108 Non Inverting Comparator
• Confetti109 Schmitt Trigger
• Confetti110 Inverting Schmitt Trigger

Connection Modules

• Confetti302 Breadboard
• Confetti303 Turn Connector
• Confetti304 Connector
• Confetti305 Simple Connector
• Confetti310 Hexacorner
• Confetti311 Hexaconnector
• Confetti311 Hexaconnector II

Power Modules

• Confetti003 PowerBrick
• Confetti 9V Battery Supply

Miscellaneous Modules

• Confetti103 Buffered Output (for audio output)

---

These boards are designed by Wolfgang Spahn 2015-20.
They are licensed under a Creative Commons Attribution-NonCommercial-ShareAlike 4.0 International License.

---
