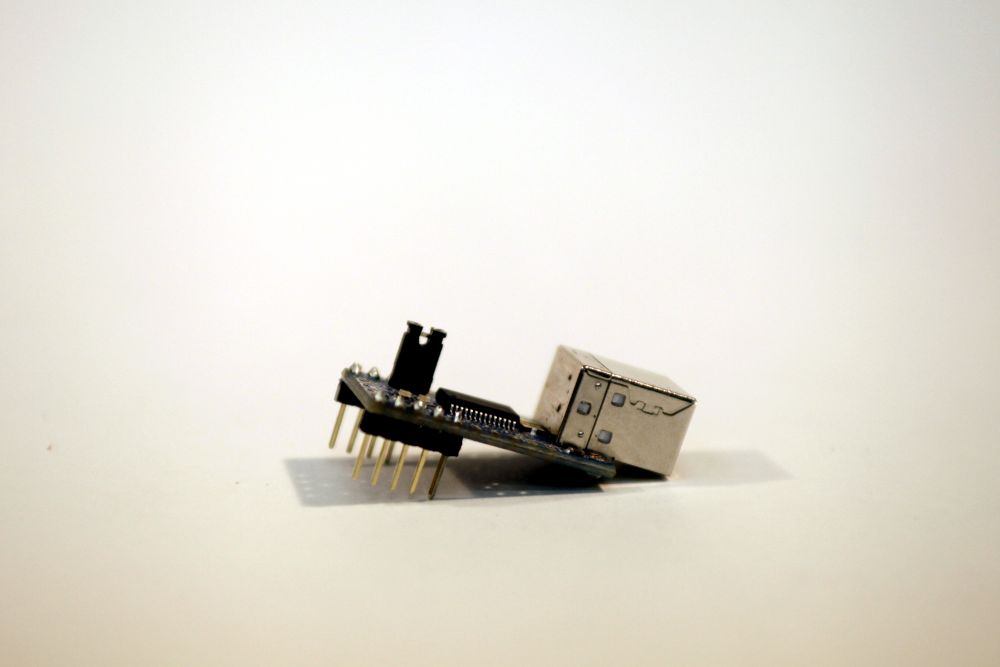

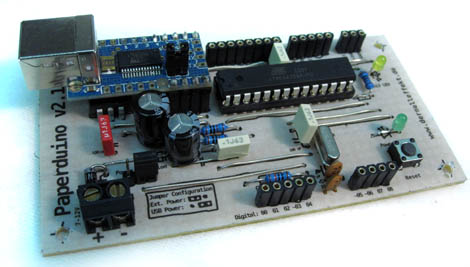

The Paperduino-Duemillenova is a Arduino Duemilanove clone and is made with a Paper-PCB. For the USB to Serial adapter a modified Arduino-MiniUSB is used (one extra pin at DTR):

To burn the bootloader one need a modified ISP connector.

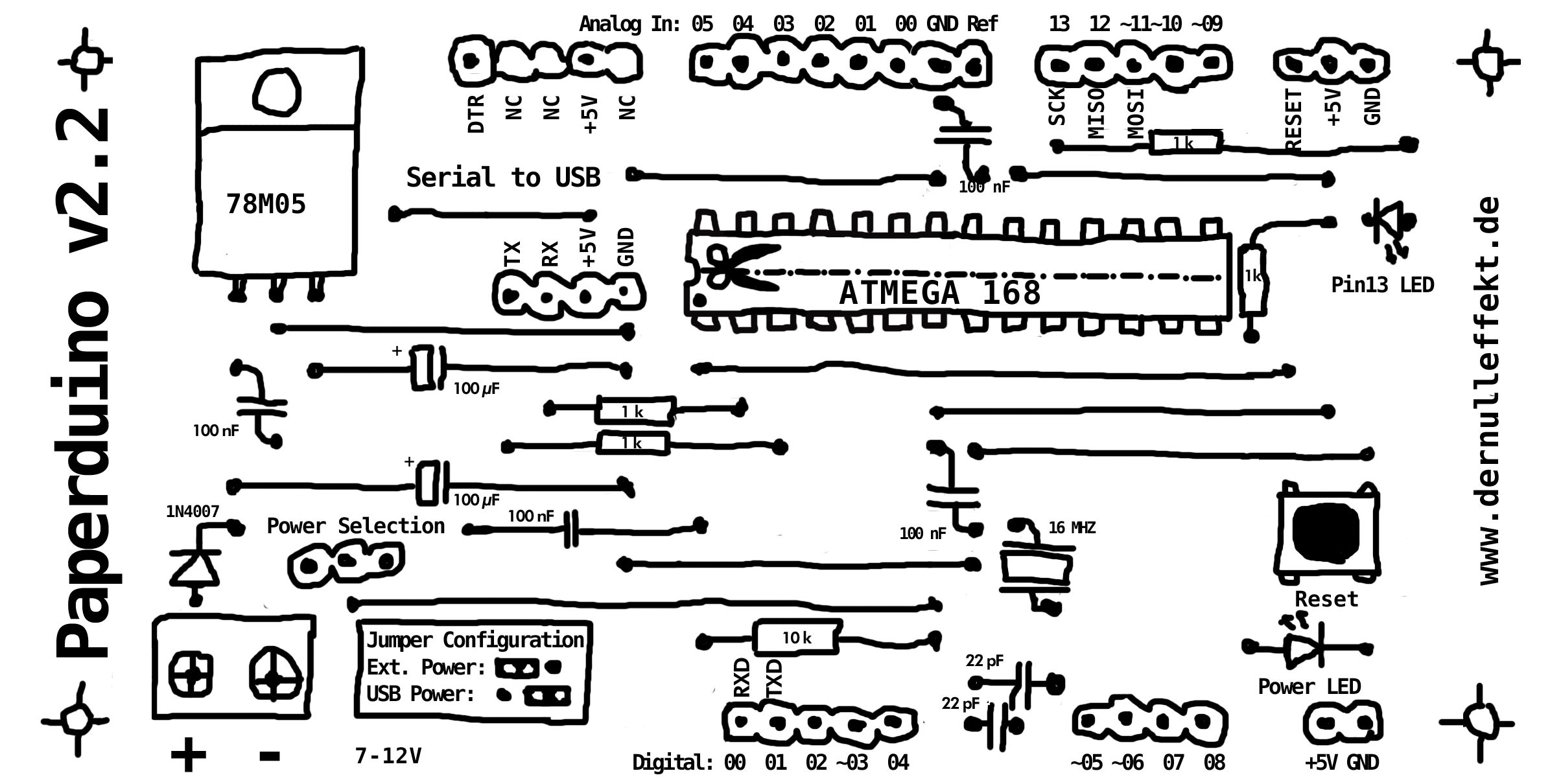

Here one finds the original schematic.


  • Atmega328 or Atmega168 with IC socket
  • 2 lowcurrent LEDs
  • voltage converter 78M05
  • crystal 16MHz
  • 2 elkos 100µF
  • 4 capacitors 100nF
  • 2 capacitors 22pF
  • diode 1N4007
  • resistors: 4x 1kOhm, 1x 10kOhm
  • reset button
  • header
  • jumper


The Paperduino-Duemilanove was designed by Wolfgang Spahn 2011.
