Paperduino-Duemilanove

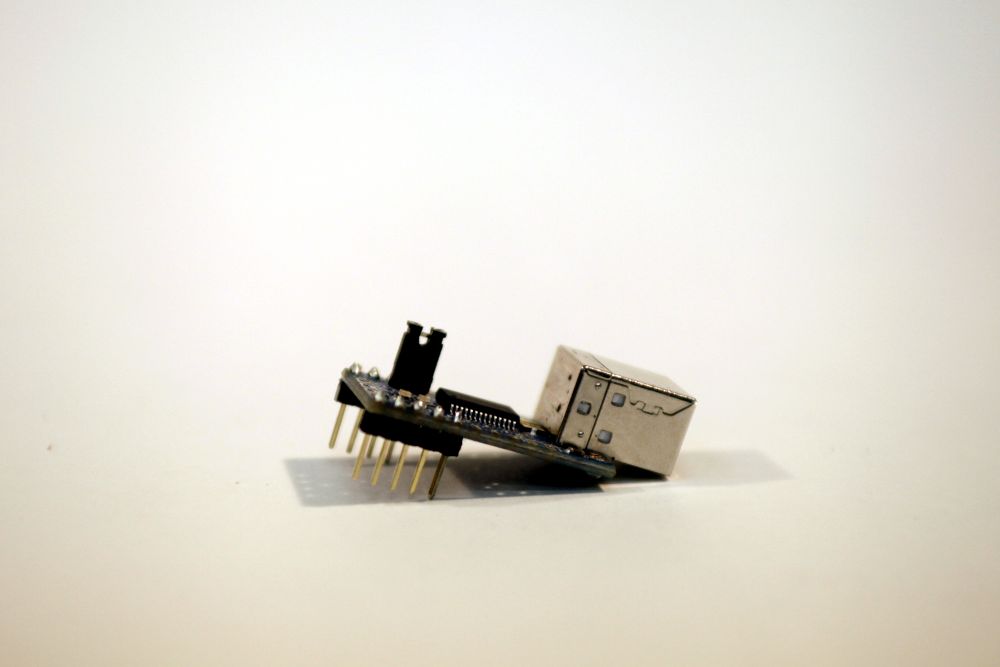

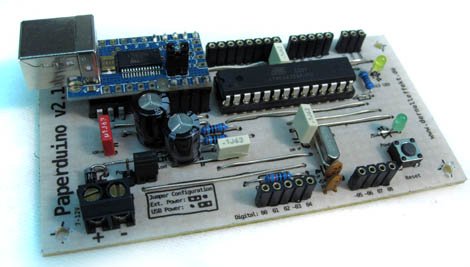

The Paperduino-Duemillenova is a Arduino Duemilanove clone and is made with a Paper-PCB. For the USB to Serial adapter a modified Arduino-MiniUSB is used (one extra pin at DTR):

To burn the bootloader one need a modified ISP connector.

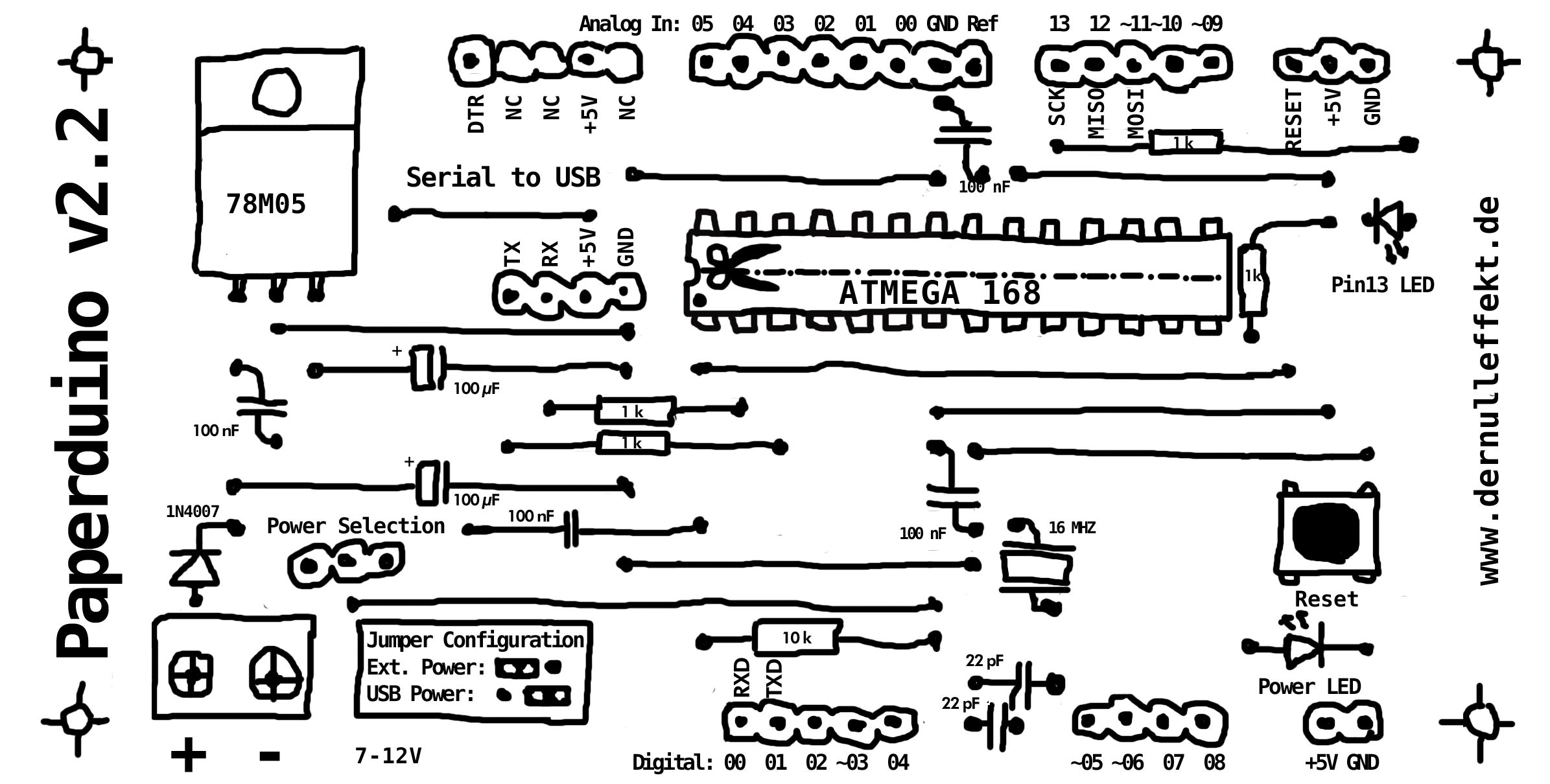

Paper-PCBs

Paperduino-Duemilanove_v1.3

Paperduino-Duemilanove_v1.3

Schematic

Here one finds the original schematic.

Parts

  • Atmega328 or Atmega168 with IC socket
  • 2 lowcurrent LEDs
  • voltage converter 78M05
  • crystal 16MHz
  • 2 elkos 100µF
  • 4 capacitors 100nF
  • 2 capacitors 22pF
  • diode 1N4007
  • resistors: 4x 1kOhm, 1x 10kOhm
  • reset button
  • header
  • jumper

License

The Paperduino-Duemilanove was designed by Wolfgang Spahn 2011.
It is licensed under a Creative Commons Attribution-NonCommercial-ShareAlike 4.0 International License.
