PB106 VC Oscillator
It's basicaly one halfe of the PB107 Sync VCO II. That's were you find the schematic, too, it is the same just without the sync poti.

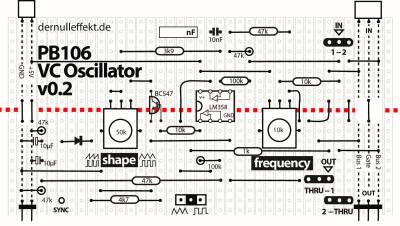

Paper PCB
Parts
- Resistors:
- 1x 1 kOhm
- 1x 4.7 kOhm
- 1x 3.9 kOhm
- 2x 10 kOhm
- 5x 47 kOhm
- 2x 100 kOhm
- Capacitors:
- 1x 10 nF
- Electrolytic Capacitors:
- 2x 10µF
- Semiconductors:
- 1x BC547 transistor
- 1x LM358 OpAmp
- 1x 1n4148 diode
- Mechanical:
- 2x IC socket, 8pins
- 1x pin strip 1×9
- 2x pin header, female 90° 1×3, 1×2
- 2x pin header, male 90° 1×3, 1×2
- 3x jumpers
- 1x mini switch
- Potentiometers:
- 1x 10k
- 1x 50k
License
The PB106 VC Oscillator was designed by Wolfgang Spahn, 2017-20.
It is licensed under a Creative Commons Attribution-NonCommercial-ShareAlike 4.0 International License.
