Raspberry GPIO Board

Here is a small connector board for the General Purpose Input/Output (GPIO) on Raspberry Pi.
This connector is a great help when you use it in combination with an breadboard.

For the GPIOs see low level peripherals

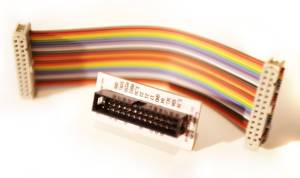

The board is desined with just a smal piece of strip grip board, two socket connector for flat ribbon cable, one shrouded box header - both with 26 pins (2 x 13) and a piece of flat ribbon cable.

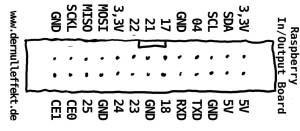

Paper-PCB

raspberry_in_output-board.zip

Parts

  • 2x 26 pin female Ribbon Socket Connector
  • 26 pin male Shrouded Box Header
  • flat ribbon cable (26)

License

The Raspberry GPIO Board was designed by Wolfgang Spahn 2012.
It is licensed under a Creative Commons Attribution-NonCommercial-ShareAlike 4.0 International License.
