Euro Rack to Paper Bit Adapter


A small adapter from Euro Rack modules to Paper Bits. It converts the -10V to +10V signal to a 0 to 5V signal.

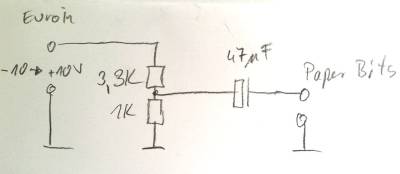

Schematic

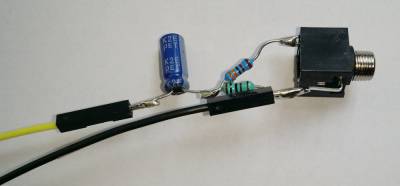

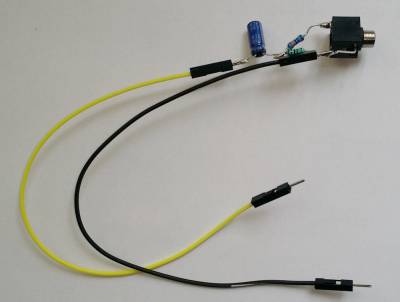

Assembly



License

The content of this page was made by Wolfgang Spahn, 2019.
It is licensed under a Creative Commons Attribution-NonCommercial-ShareAlike 4.0 International License.

Creative Commons License
