The PaperCocoMake7 in an Arduino board based on Paper PCB and an ATtiny85 chip. It is the paper version of the CocoMake7. Thanks to Marc, Yashas, Shreyasi and Budi from Cocomake7.
For code and the Arduino IDE mod please follow the CocoMake7 webside.
Here you find an other ATiny board the PaperTiny.

Paper CocoMake7

Paper CocoMake

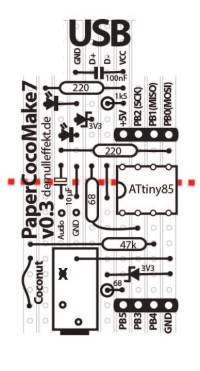

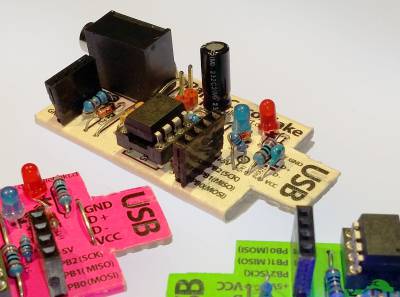

Paper CocoMake7 with audio out and no power on board:

papercocomake7_03.zip

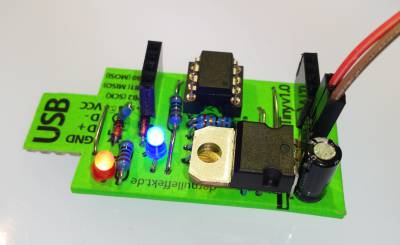

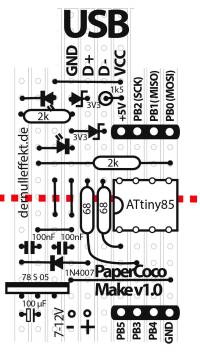

Paper CocoMake with power on board no audio out:

papercocomake1_10.zip

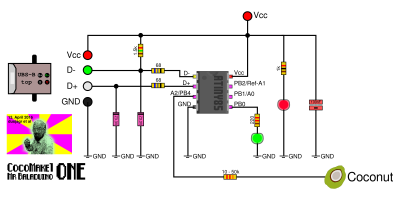

It's the same schematic as the one from https://cocomake7.github.io/#, I just used 2k as the LED resistors and added a power supply.

• Resistors:
• 2x 2 kOhm
• 1x 1.5 kOhm
• 1x 47 kOhm(1)
• 2x 68 Ohm
• Capacitors:
• 2x 100 nF
• 1x 10µF(1)
• 1x 100µF(2)
• Diodes:
• 2x Z-Diode 3,3V
• Semiconductors
• 2x Standart LED
• 1x 7805(2)
• Mechanical:
• 1x IC socket, 8pins
• 1x Pin-Strip male 1×2(2)
• 2x Pin-Strip female 1×4
• jack socket(1)

(1) Paper CocoMake7
(2) Paper CocoMake

The Paper CocoMake7 was designed by Wolfgang Spahn 2017-18.
It is licensed under a Creative Commons Attribution-NonCommercial-ShareAlike 4.0 International License.
