Confetti505 End Stage
That's an amplifier board for the analog computer Confetti. The two MOSFET IRF520 on the board allows to control devices like motors, solenoids and coils up to 20V with the analog computer.
One needs an extra power source connected to the 20V connector on the End Stage, too.

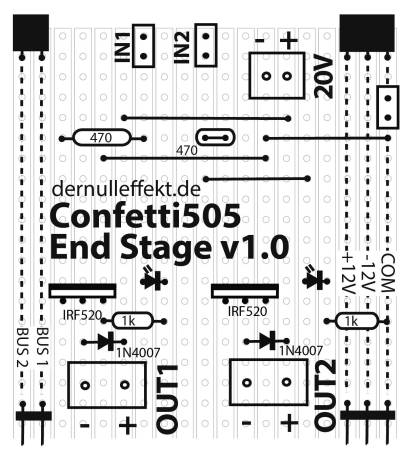

Paper PCB
License
The Confetti505 End Stage was designed by Wolfgang Spahn 2015-19.
It is licensed under a Creative Commons Attribution-NonCommercial-ShareAlike 4.0 International License.
